acrylic 3-piece

Three piece Acrylic IOLs represent the state of the art in IOL technology. They incorporate the latest materials, manufacturing techniques and process innovations. The result is a small incision lens with exceptional folding and unfolding chracteristics, superrior stability, clarity, biocompatibility and UV protection.

The soft acrylic optic has one of the highest available indecees of refraction, resulting in a lower specific optic thickness. This makes folding easier even at higher dioptric powers.

The lens is made of an optical grade hydrophilic acrylic. It has a 26% water content, and a UV blocker is chemically bonded into the polymer structure.

The optics have well defined edges, better resisting the formation of secondary cataracts.

The haptics are made of a biocompatible polymer monofilament. They provide excellent long term fixation and centration and ensure good maneuverability during implantation.

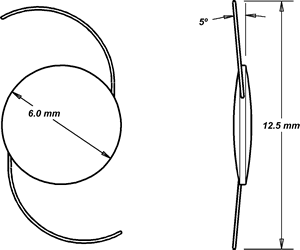

Specifications:

Haptic Shape ........... Short-C
Optic size ............. 6.0 mm
Haptic Length .......... 12.5 mm
Positioning Holes ...... None
Dioptric Power Range ... 10.0-30.0
Vault Angle ............ 5 Degrees
A-Constant ............. 118.0
AC-Depth ............... 4.96
Optic Shape ............ Equi-Convex
Optic Edge ............. Square
Refractive Index ....... 1.457
